RTK stakeoutBring your design
Bring your design
onto the site.
Less manual transcriptionClearer field guidanceTraceable handover
Horizontal RTK RMS
Manufacturer specificationWorkflow benefit
Carry design coordinates into the field and retain the checked results.Recommended setupAn integrated setup.
An integrated setup.
From field to office.
Combine V10A RTK positioning with Trion Survey for design import, stakeout and field verification.
Connected tools. One field workflow.
V10A + Trion Survey

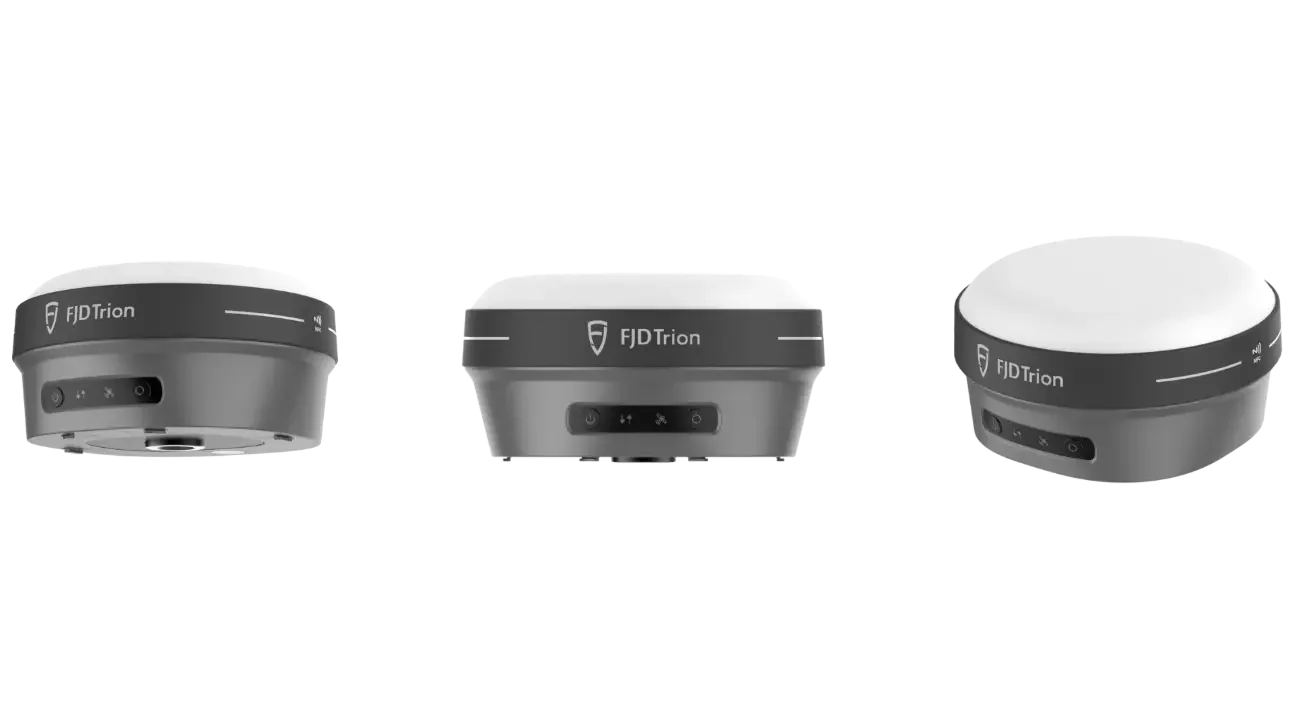

V10A

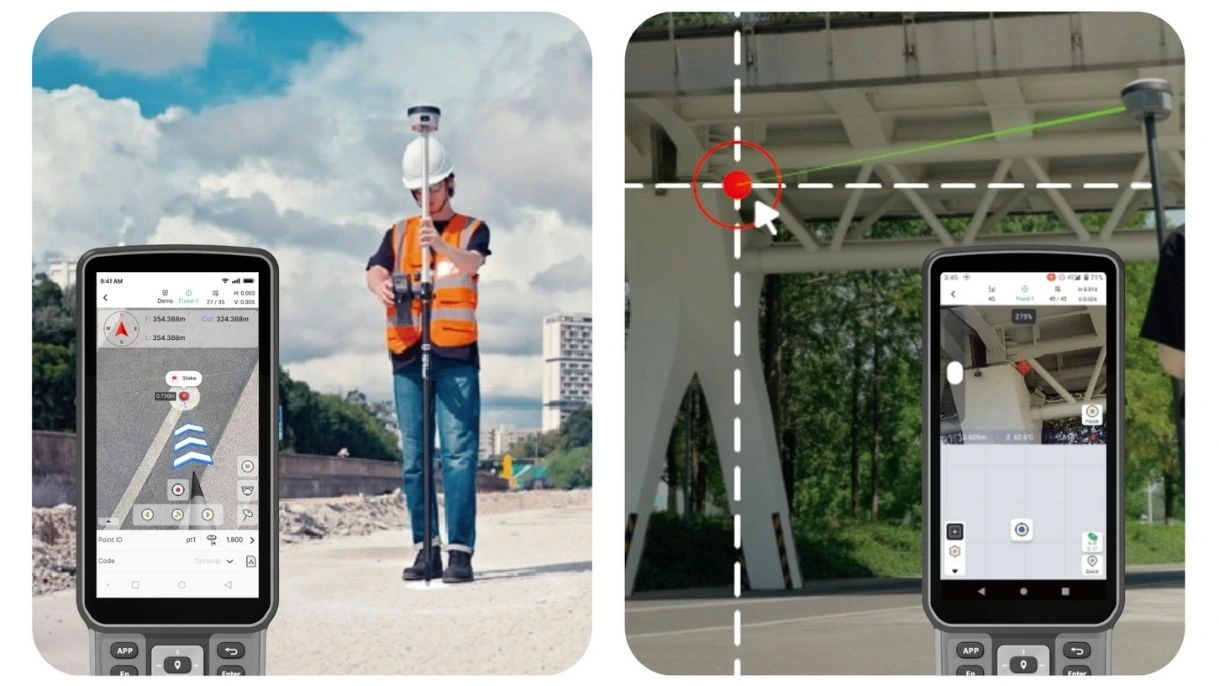

Locate and check design points with visual RTK guidance.
Request a quoteProduct detailsPackage & compatibility details for V10A
Before ordering: confirm receiver/controller configuration, Trion Survey version, correction source, pole and local support with the quote.
Trion Survey

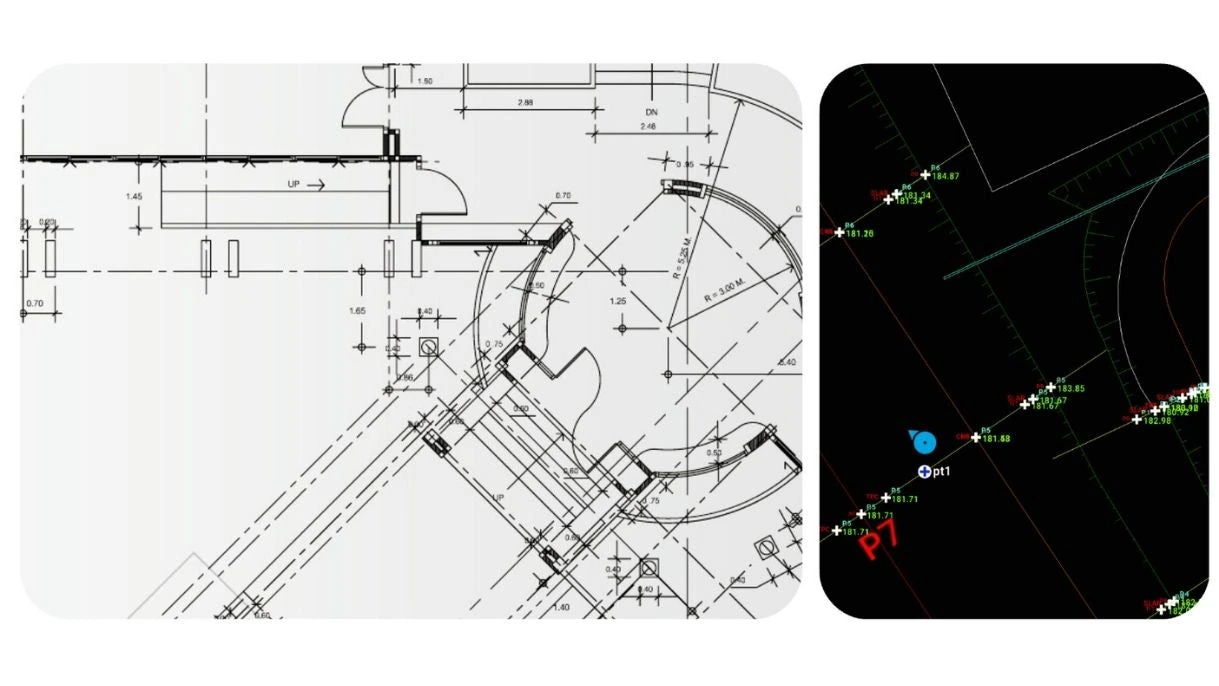

Bring drawings into the field and take checked survey records back.
View in storeProduct detailsPackage & compatibility details for Trion Survey
Confirm controller compatibility, app licence, required import/export formats and whether the hardware bundle already includes the licence.
Hardware, accessories and software plans may be sold separately. Confirm the selected package before ordering.
WorkflowFrom field preparation
From field preparation
to project handover.
Construction layout · Site verification · Survey control
RTK stakeout
View the field workflow.
Video coming soon
Step 01Prepare
Prepare
the survey

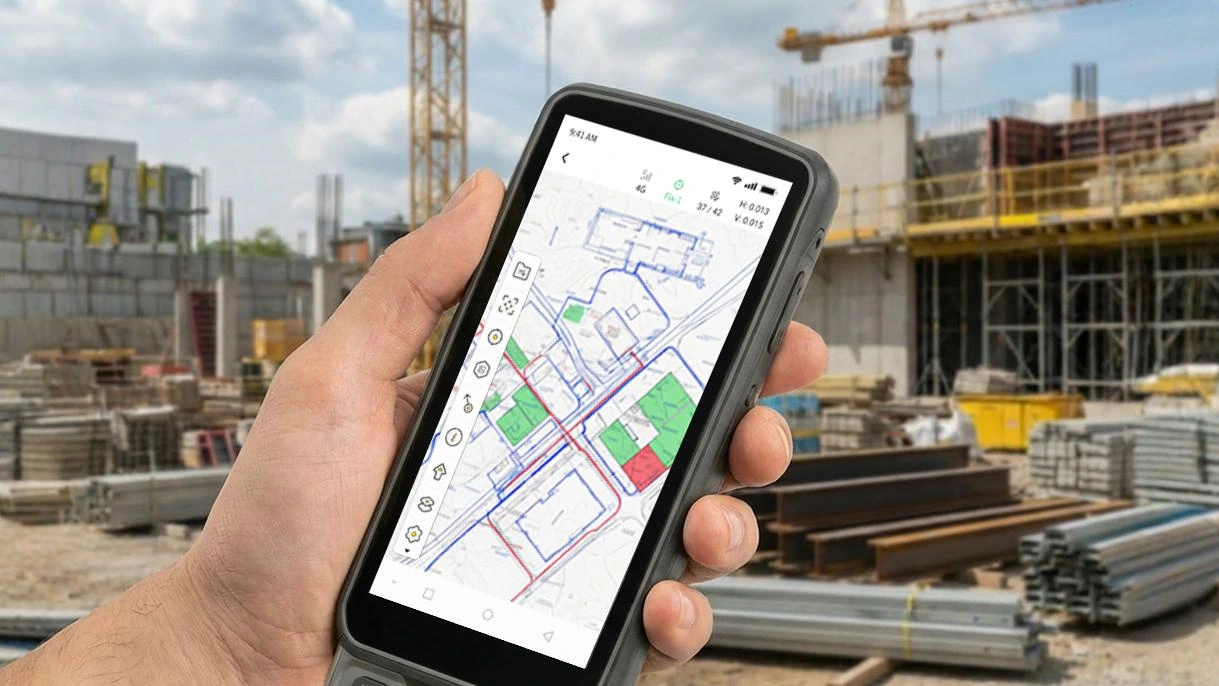

Confirm the drawing revision, units and coordinate reference system. Configure corrections and pole height, then check a known point.
Checks & results
- Quality checks
- Revision, units, coordinates, corrections, pole height and known point.
- Deliverable
- A checked project setup.
Why it mattersResolve reference errors before setting out.
Step 02Set out
Set out
and check

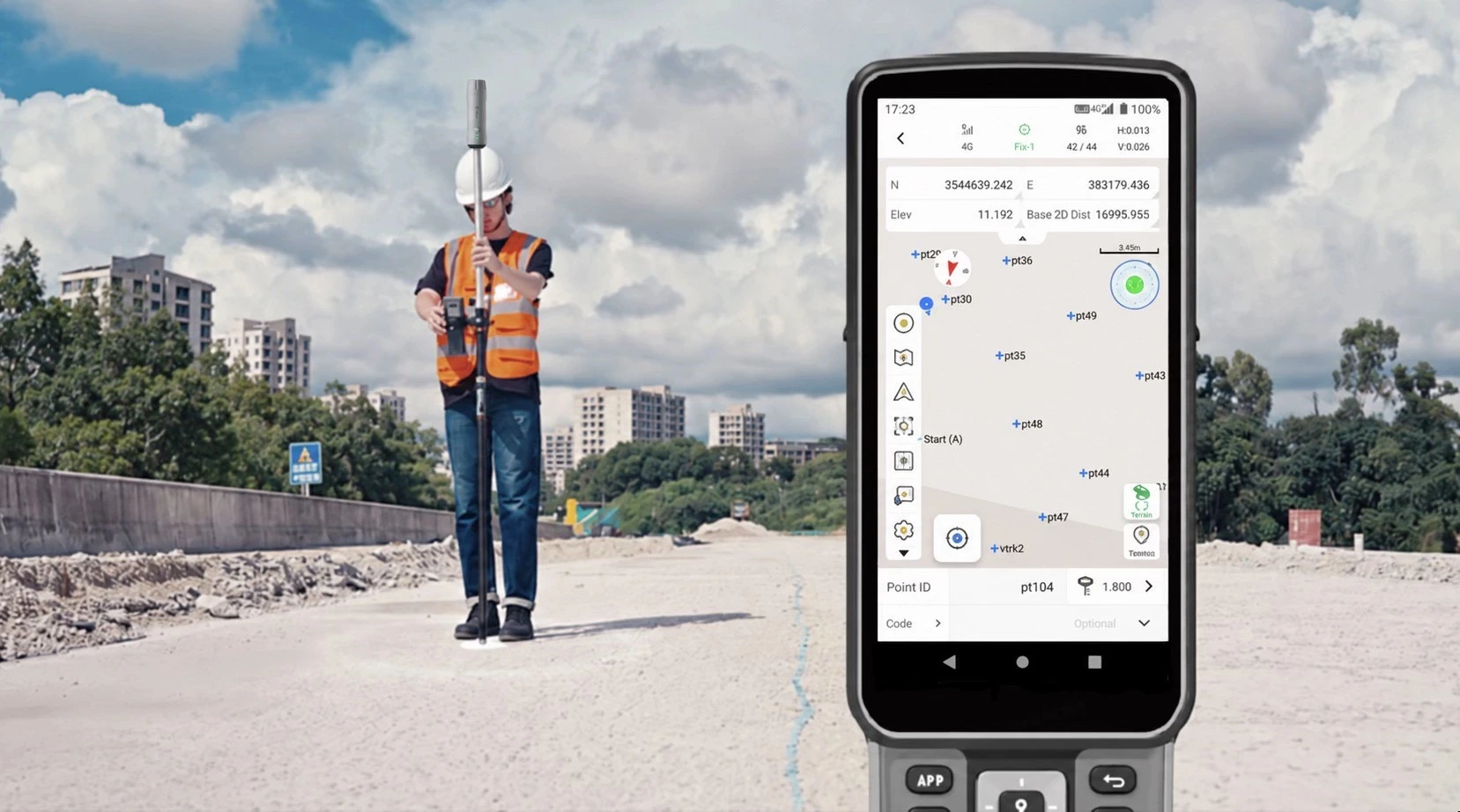

Use the supported V10A guidance to locate the design point. Check positioning quality and record the coordinates and elevation.
Checks & results
- Quality checks
- Quality status and the supported task in the installed app.
- Deliverable
- Identified stakeout marks, coordinates and elevations.
Why it mattersKeep the field work tied to the approved design.
Step 03Verify
Verify
independently

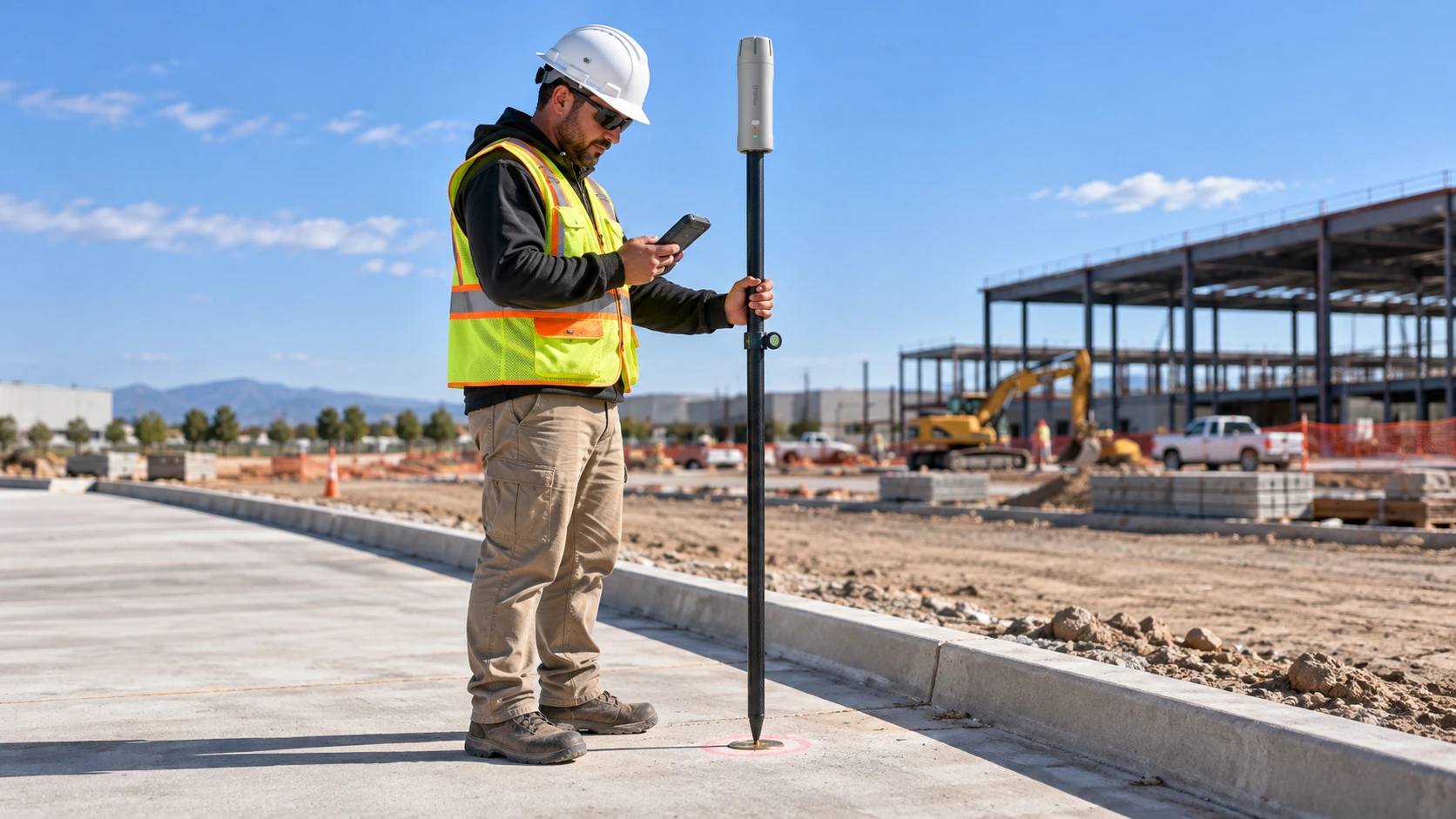

Remeasure against the agreed reference and complete a closing check. Investigate differences against project tolerances.
Checks & results
- Quality checks
- Reference checks and closing check against project tolerance.
- Deliverable
- Recorded differences and exceptions.
Why it mattersDetect errors while correction is still practical.
Step 04Export
Export
the record
Save point IDs, readings, checks and the drawing revision. Confirm the receiving team can open the agreed output.
Checks & results
- Quality checks
- File readability, point IDs and retained checks.
- Deliverable
- The agreed record and original observations.
Why it mattersMake the handover traceable.
DeliverablesDeliverables for
Deliverables for
your project team.
- Design revision, units and coordinate reference
- Coordinates, elevations and independent check results
- Reviewed files with exceptions and operator notes
A verified project sample for this workflow will be added here. The reference image is not a same-project acceptance record.
Request a sample datasetWhat could your team save?
Estimate labour savings, payback and five-year returns for your project.
Application requirementsIs this the right fit
Is this the right fit
for your site?
Construction layout · Site verification · Survey control
What should be checked before work starts?
Drawing revision, coordinate reference, correction source, pole height, positioning status and an independent known point.
Does this replace professional construction surveying?
No. Agree the task and acceptance criteria with the responsible survey professional; routine field checks do not replace contractually required surveying.
Purchase & consultationSpecify the setup
Specify the setup
for your project.
Choose your equipment, or talk through your project with our team.
